Wire connector | Products
This current location is:
KV313
click: 3621
7 (Installation technology)?Minimum sectional area of connectable wire [mm?]0,08 - 2,5 mm??Minimum sectional area of connectable wire [AWG]28 - 14 AWG?Applicable conductor typee+f?The connection methodCAGE CLAMP?CONNECTION?Minimum sectional area of c
pdf download：click down
Detailed description
- technical

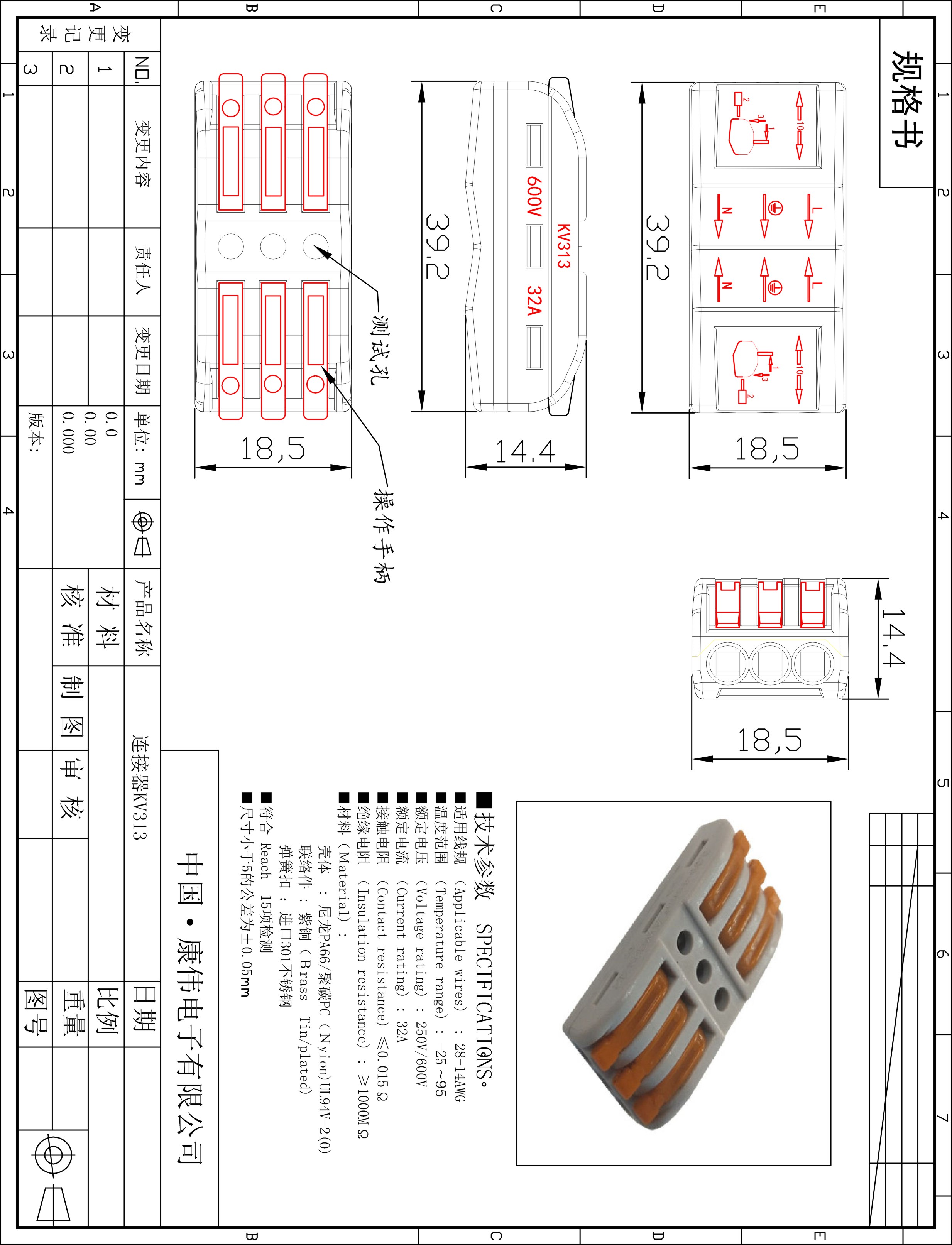

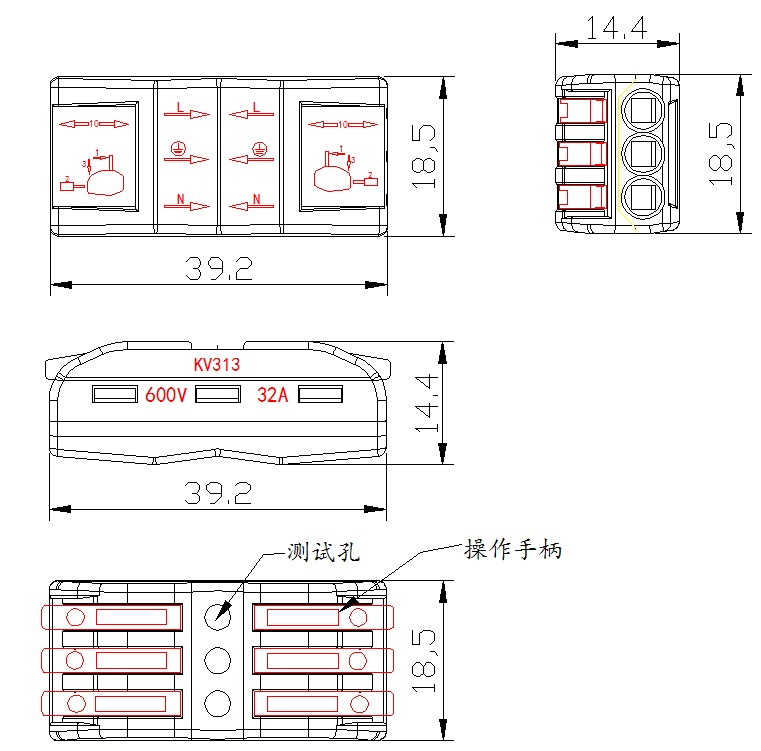

- Dimension
- Ordering
- Related
| 7 (Installation technology) | ||
| ? | Minimum sectional area of connectable wire [mm?] | 0,08 - 2,5 mm? |
| ? | Minimum sectional area of connectable wire [AWG] | 28 - 14 AWG |
| ? | Applicable conductor type | e+f |
| ? | The connection method | CAGE CLAMP?CONNECTION |
| ? | Minimum sectional area of connectable wire [mm?] | 0,08 - 4 mm? |
| ? | Minimum sectional area of connectable wire [AWG] | 28 - 12 AWG |
| ? | Applicable conductor type | f |
| ? | The rated voltage EN | 250 V |
| ? | Can withstand instantaneous peak voltage | 4 kV |
| ? | Pollution levels | 2 |
| ? | Rated current EN | 32 A |
| ? | weight | 3,072 g |
| ? | color | grey |
| ? | Wiring direction | Lateral connection |
| ? | Number of connectable wires | 2 |
| ? | Number of potential | 1 |
| ? | height | 14.8?mm |
| ? | height | |
| ? | thickness | 18.6?mm |
| ? | thickness | |
| ? | width | 39mm |
| ? | Apply to guide | TH35/7.5 |
| ? | Minimum stripping length | 9 mm |
| ? | Maximum stripping length | 10 mm |
| ? | Wire stripping length | 0,37 in |
