The fence type PCB terminals | Products
This current location is:
KV12-A
click: 2673
APPROVAL?Certification LinkElectricalStandardULIECRated voltage300V250VRated current30A41AWire range18-10AWG6.0mm2Withstand VoltageAC2000V/MinInsulation Resistance1000MΩ/DC500V?MechanicalMax.Torque Value1.2N.m 10.6Lb.inAmbient temperature-40°C~+8
pdf download：click down
Detailed description
- technical
- Dimension
- Ordering
- Related
| APPROVAL |
 ?Certification Link
|
|
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
300V
|
250V
|
| Rated current |
30A
|
41A
|
| Wire range |
18-10AWG
|
6.0mm2
|
| Withstand Voltage |
AC2000V/Min
|
|
| Insulation Resistance |
1000MΩ/DC500V
|
|
| ? | ||
| Mechanical | ||
| Max.Torque Value |
1.2N.m 10.6Lb.in
|
|
| Ambient temperature |
-40°C~+80°C
|
|
| ? | ||

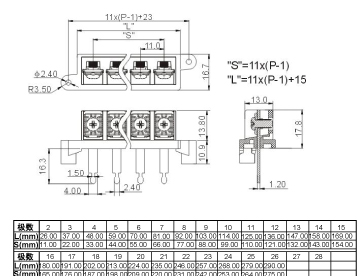

| Dimensions | ||
| Pitch |
PC UL 94V-2 |
|
| Poles |
2P-11P
|
|
|
?
|
||
|
Material
|
||
| Housing |
PC UL 94V-2 |
|
| Terminal |
Brass,1.2t, Gold plated
|
|
| Screws |
Steel,M4?Gold plated
|
|
pdf down：click down
