The fence type PCB terminals | Products
This current location is:
KV31B
click: 3481
APPROVAL?Certification Link ElectricalStandardULIECRated voltage600V750VRated current30A41AWire range18-10AWG6.0mm2 Withstand VoltageAC2000V/MinInsulation Resistance1000MΩ/DC500V?MechanicalMax.Torque Value1.2N.m 10.6Lb.inAmbient temperature-40°C~
pdf download：click down
Detailed description
- technical

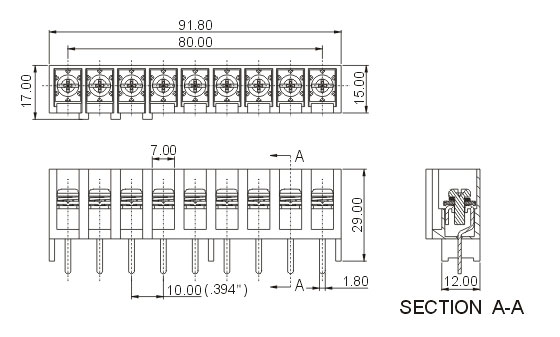

- Dimension
- Ordering
- Related
| APPROVAL |
 ?Certification Link
|
|
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
600V
|
750V
|
| Rated current |
30A
|
41A
|
| Wire range |
18-10AWG
|
6.0mm2
|
| Withstand Voltage |
AC2000V/Min
|
|
| Insulation Resistance |
1000MΩ/DC500V
|
|
| ? | ||
| Mechanical | ||
| Max.Torque Value |
1.2N.m 10.6Lb.in
|
|
| Ambient temperature |
-40°C~+120°C
|
|
| ? | ||
| Dimensions | ||
| Pitch |
10.0mm(.394")
|
|
| Poles |
8P-9P
|
|
|
?
|
||
|
Material
|
||
| Housing |
PA66+25%GF, UL94V-0
|
|
| Terminal |
Brass,1.0t,Tin-Plated
|
|
| Screws |
Steel,M4 Ni-Plated
|
|
pdf down：click down
