The fence type PCB terminals | Products
This current location is:
KV1450-45
click: 3097
APPROVAL?Certification Link ElectricalStandardULIECRated voltage300V600VRated current50A45AWire range22-8AWG10.0mm2 Withstand VoltageAC3500V/MinInsulation Resistance5000MΩ/DC500V?MechanicalMax.Torque Value2.0N.m 17.5Lb.inAmbient temperature-40°C~
Detailed description
- technical

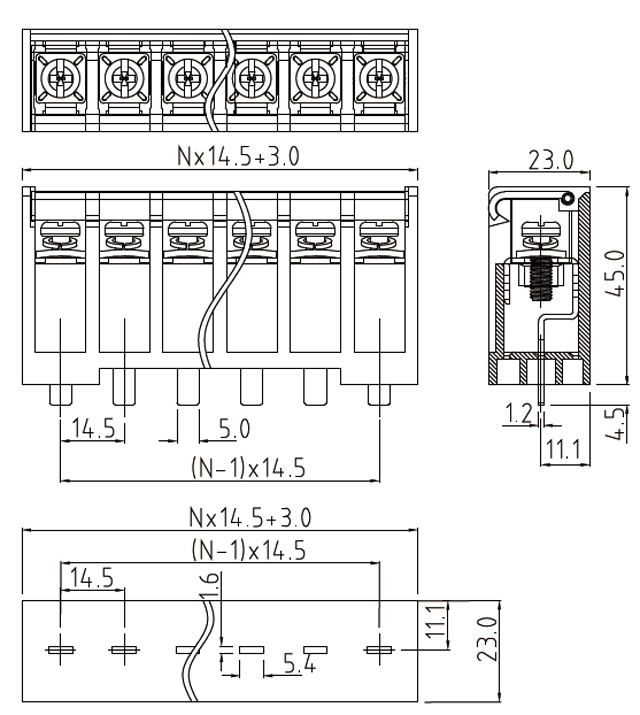

- Dimension
- Ordering
- Related
| APPROVAL |
 ?Certification Link
|
|
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
300V
|
600V
|
| Rated current |
50A
|
45A
|
| Wire range |
22-8AWG
|
10.0mm2
|
| Withstand Voltage |
AC3500V/Min
|
|
| Insulation Resistance |
5000MΩ/DC500V
|
|
| ? | ||
| Mechanical | ||
| Max.Torque Value |
2.0N.m 17.5Lb.in
|
|
| Ambient temperature |
-40°C~+140°C
|
|
| ? | ||
| Dimensions | ||
| Pitch |
14.5mm(.571")
|
|
| Poles |
2P-14P
|
|
|
?
|
||
|
Material
|
||
| Housing |
PBT+20%GF,UL94V-0
|
|
| Terminal |
Brass,1.5t,Tin-Plated
|
|
| Screws |
Steel,M5 Ni-Plated
|
|
No file download
