Plug type PCB terminals | Products
This current location is:
HT508K-5.08
click: 2560
APPROVAL?Certification LinkElectricalStandardULIECRated voltage150V320VRated current12A20AWire range24-12AWG2.5mm2Withstanding voltageAC2500V/1MinMechanicalTorque0.4Nm(3.5Lb-In)Ambient temperature-40°C~+105°CStrip length7mmDimensionsPitch5.08mm(.2
pdf download：click down
Detailed description
- technical

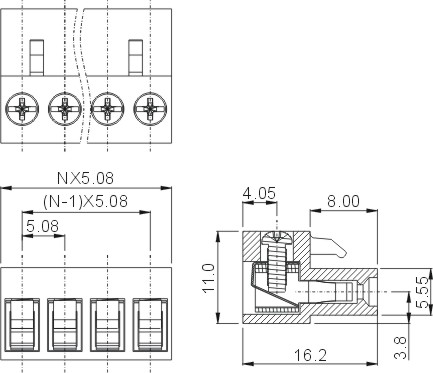

- Dimension
- Ordering
- Related
| APPROVAL |
 ?Certification Link
|
|
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
150V
|
320V
|
| Rated current |
12A
|
20A
|
| Wire range |
24-12AWG
|
2.5mm2
|
| Withstanding voltage |
AC2500V/1Min
|
|
| Mechanical | ||
| Torque |
0.4Nm(3.5Lb-In)
|
|
| Ambient temperature |
-40°C~+105°C
|
|
| Strip length |
7mm
|
|
| Dimensions | ||
| Pitch |
5.08mm(.200")
|
|
| Poles |
2P-24P
|
|
| Material | ||
| Housing |
PA66,UL94V-0
|
|
| Screws |
M2.5,Steel,Ni-plated
|
|
| Contact |
Phosphor bronze
|
|
| Cage |
Phosphor bronze,Ni-plated
|
|
pdf down：click down
