UK rail type terminal | Products
This current location is:
UKMT 4
click: 3302
CapabilityApproval StandardULIECVoltage600V800VCurrent16A16AWire size24-12AWG0.2-4mm2T/W/End plate6.2/51/-mmHeight (NS35:7.5/NS35:15/NS32)58.5/66/63.5mmRated Surge Voltage/Contamination Class6kV/3Stripping Length8 mmScrew Thread/Tightening TorqueM3/0
pdf download：click down
Detailed description
- technical

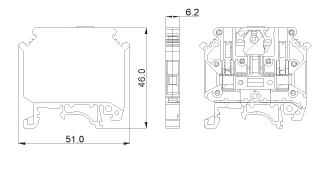

- Dimension
- Ordering
- Related
| Capability | |||
| Approval |
|
|
|
| Standard |
UL
|
IEC
|
|
| Voltage |
600V
|
800V
|
|
| Current |
16A
|
16A
|
|
| Wire size |
24-12AWG
|
0.2-4mm2
|
|
| T/W/End plate |
6.2/51/-mm
|
||
| Height (NS35:7.5/NS35:15/NS32) |
58.5/66/63.5mm
|
||
| Rated Surge Voltage/Contamination Class |
6kV/3
|
||
| Stripping Length |
8 mm
|
||
| Screw Thread/Tightening Torque |
M3/0.5Nm
|
||
| Internal Cylindrical Gage |
A4
|
||
| Insulating Material/Inflammability Class |
PA/V-0
|
||
pdf down：click down
