UK rail type terminal | Products
This current location is:
UKMB6/E-PE
click: 4543
CapabilityApprovalStandardULIECVoltage--Current--Wire size20-8AWG0.5-6.0mm2T/W/End plate8.2/39/-mmHeight (NS15)36mmRated Surge Voltage/Contamination Class6kV/3Stripping Length10 mmClamping Screw:Screw Thread/Tightening TorqueM4/1.5-1.8NmFixing Screw:
pdf download：click down
Detailed description
- technical
- Dimension

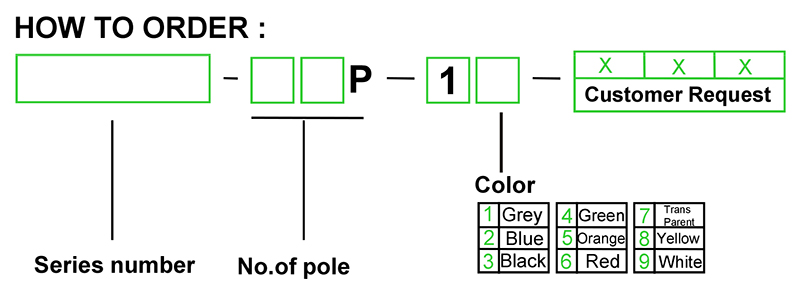

- Ordering
- Related
| Capability | ||
| Approval |
|
|
| Standard |
UL
|
IEC
|
| Voltage |
-
|
-
|
| Current |
-
|
-
|
| Wire size |
20-8AWG
|
0.5-6.0mm2
|
| T/W/End plate |
8.2/39/-mm
|
|
| Height (NS15) |
36mm
|
|
| Rated Surge Voltage/Contamination Class |
6kV/3
|
|
| Stripping Length |
10 mm
|
|
| Clamping Screw:Screw Thread/Tightening Torque |
M4/1.5-1.8Nm
|
|
| Fixing Screw:Screw Thread/Tightening Torque |
M4/1.5-1.8Nm
|
|
| Internal Cylindrical Gage |
A5
|
|
| Insulating Material/Inflammability Class |
PA/V-0
|
|
pdf down：click down
