ZCMCS
click: 2506
Stitch5 mmStitch0,197 inThe number of2Minimum connection area of wire[mm?]0,2 mm?Maximum wire cut area?[mm?]2,5 mm?Minimum connection area of wire?[AWG]24 AWGMaximum wire cut area?[AWG]12 AWGThe connection methodCONTACT CAGE CLAMP?CONNECTIONR
Detailed description
- technical

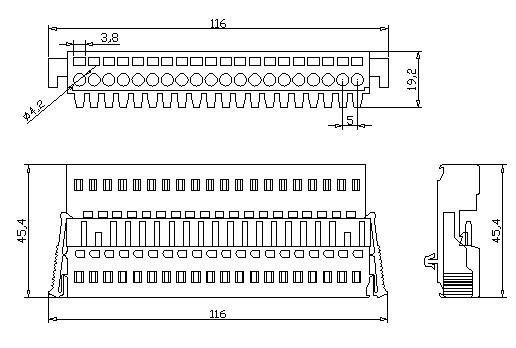

- Dimension
- Ordering
- Related
|
Stitch |
5 mm |
|
Stitch |
0,197 in |
|
The number of |
2 |
|
Minimum connection area of wire[mm?] |
0,2 mm? |
|
Maximum wire cut area?[mm?] |
2,5 mm? |
|
Minimum connection area of wire?[AWG] |
24 AWG |
|
Maximum wire cut area?[AWG] |
12 AWG |
|
The connection method |
CONTACT CAGE CLAMP?CONNECTION |
|
Rated voltage EN |
400?V |
|
Can withstand the instantaneous peak voltage |
4 kV |
|
Pollution levels |
3 |
|
Rated current EN |
16 A |
|
Color |
Gray |
|
The number of connected wires |
2 |
|
Number of potential |
2 |
|
Minimum stripping length |
10 mm |
|
Maximum stripping length |
11 mm |
|
Wire stripping length |
0,43 in |
