H type terminal | Products
This current location is:
H2519-16P
click: 3269
StandardUL/CERated voltage600VRated current36ALead wire diameter6mm2Size: Length/Width/Height176/20/20mmRated impact voltage/Pollution level8kV/3Mechanical properties ofScrew gauge/TwistM3/0.6-0.8NmPlug gaugeA3MaterialHousingPA66 UL94V-0TerminalBrass
Detailed description
- technical

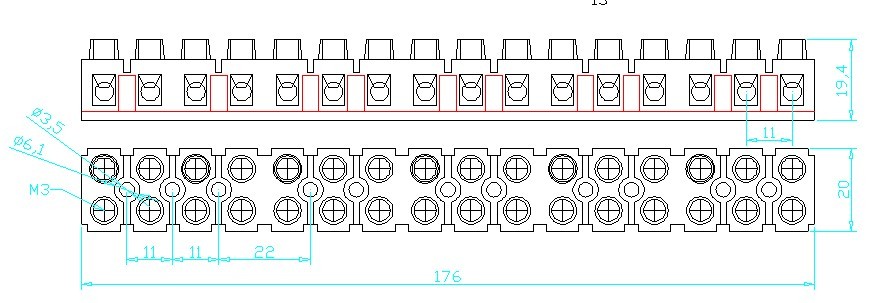

- Dimension
- Ordering
- Related
|
UL/CE |
|
|
Rated voltage |
600V |
|
Rated current |
36A |
|
Lead wire diameter |
6mm2 |
|
Size: Length/Width/Height |
176/20/20mm |
|
Rated impact voltage/Pollution level |
8kV/3 |
|
|
|
|
Mechanical properties of |
|
|
Screw gauge/Twist |
M3/0.6-0.8Nm |
|
Plug gauge |
A3 |
|
|
|
|
|
|
|
Material |
|
|
Housing |
PA66 UL94V-0 |
|
Terminal |
Brass, Nickel plating |
|
Screws |
Steel, M3 Nickel plating |
No file download
