Plug type PCB terminals | Products
This current location is:
2EDGK-3.5/3.81
click: 5219
APPROVALCertification LinkCertification LinkElectricalStandardULIECRated voltage300V250VRated current8A7AWire range28-16AWG0.5-1.5mm2Rated impulse voltage2.5KVMechanicalTorque0.2Nm(1.7Lb-In.)Ambient temperature-40°C~+105°CStrip length7mmDimensionsP
pdf download：click down
Detailed description
- technical
- Dimension

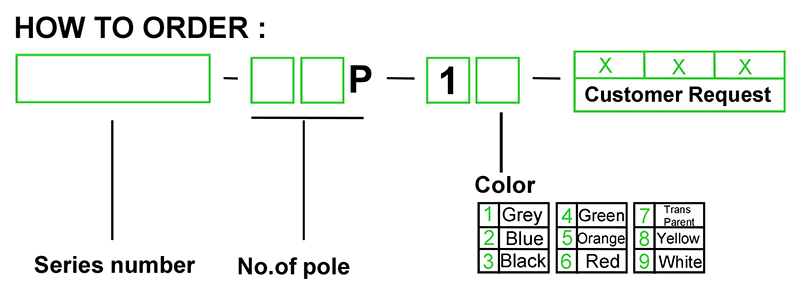

- Ordering
- Related
| APPROVAL |
 Certification Link
|
 Certification Link
|
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
300V
|
250V
|
| Rated current |
8A
|
7A
|
| Wire range |
28-16AWG
|
0.5-1.5mm2
|
| Rated impulse voltage |
2.5KV
|
|
| Mechanical | ||
| Torque |
0.2Nm(1.7Lb-In.)
|
|
| Ambient temperature |
-40°C~+105°C
|
|
| Strip length |
7mm
|
|
| Dimensions | ||
| Pitch |
3.5mm(.138") 3.81mm(.150")
|
|
| Poles |
2P-24P
|
|
|
|
||
|
Material
|
||
| Housing |
PA66,UL94V-0
|
|
| Screws |
M2,steel,Cr3+ Zn plated
|
|
| Contact |
Phosphor bronze
|
|
| Cage |
Brass,Ni plated
|
|
pdf down：click down
