Screw type PCB terminals | Products
This current location is:
KV635-6.35
click: 4634
APPROVALCertification LinkCertification LinkElectricalStandardULIECRated voltage300V450VRated current30A32AWire range26-10AWG4.0mm2Withstanding voltageAC2500V/1MinMechanicalTorque0.5Nm(4.4Lb-In.)Ambient temperature-40°C~+105°CStrip length8-9mmDimen
pdf download：click down
Detailed description
- technical

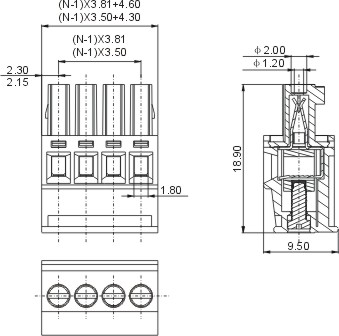

- Dimension
- Ordering
- Related
| APPROVAL |
 Certification Link
|
 Certification Link
|
| Electrical | ||
| Standard |
UL
|
IEC
|
| Rated voltage |
300V
|
450V
|
| Rated current |
30A
|
32A
|
| Wire range |
26-10AWG
|
4.0mm2
|
| Withstanding voltage |
AC2500V/1Min
|
|
| Mechanical | ||
| Torque |
0.5Nm(4.4Lb-In.)
|
|
| Ambient temperature |
-40°C~+105°C
|
|
| Strip length |
8-9mm
|
|
| Dimensions | ||
| Pitch |
6.35mm(.250")
|
|
| Poles |
2P,3P-24P
|
|
|
|
||
|
Material
|
||
| Housing |
PA66,UL94V-0
|
|
| Screws |
M3,steel,Cr3+ Zn plated
|
|
| Pin header |
Brass,Tin plated
|
|
| Cage |
Brass,Ni plated
|
|
pdf down：click down
